HC-3000P Flexible Bending Center

Flexible Bending Center vs. Traditional Press Brake - HC-3000P

Press brakes have been the backbone of sheet-metal forming for decades, but the economics have shifted. Labor costs are up, skilled operators are hard to keep, and customers expect short lead times on small batches. This comparison of the HC-3000P bending center against a conventional press brake explains why more enclosure makers specify servo panel benders.

The bottom line: a press brake is a flexible tool that requires a highly flexible person. The HC-3000P panel bender puts that flexibility into the software, so any trained operator can produce accurate parts on day one. For shops under pressure to cut labor and shorten quote lead times, that shift is what makes the bending center investment pay back.

Mechanical structure

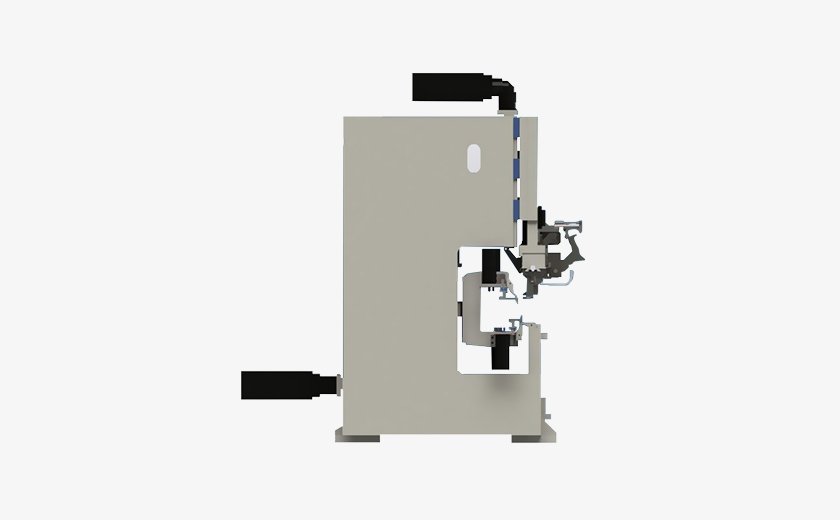

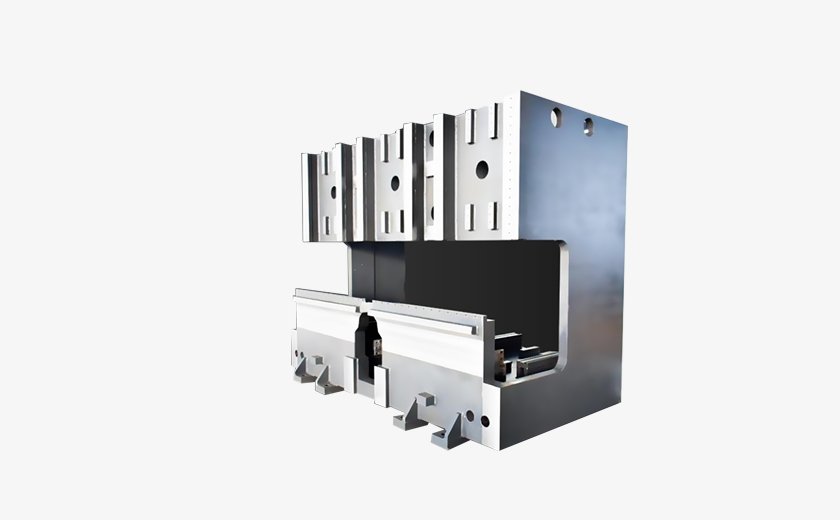

Walk up to the HC-3000P and the first thing you notice is how solid the frame feels. This is a servo flexible bending center built around a welded carbon-steel bed rather than a casting. Welded construction lets us design the stiffness exactly where the folding forces act, and the material's elastic modulus is well above cast iron, so the frame deflects far less under the large clamping and folding loads a 3000 mm panel places on it.

Heat treatment is what makes that stiffness durable. Every weldment on the HC-3000P is tempered to remove internal stress before final machining. Without that step the bed would continue to relax after installation, and your bending accuracy would drift with the seasons. With it, the machine bed and folding beam stay geometrically stable, which is the foundation of the +/-0.1 mm/m repeatability the bending center delivers.

Servo system

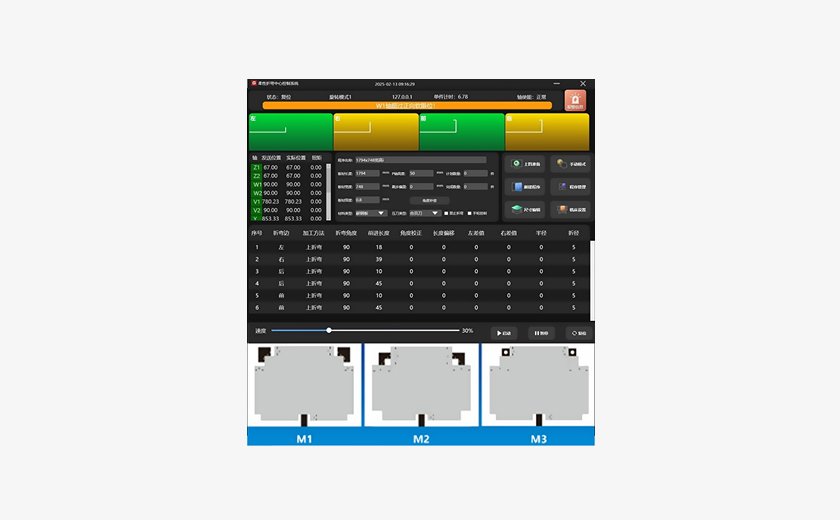

Software is where a modern bending center earns its money, and the HC-3000P ships with a self-developed CNC purpose-built for panel bending. You get a 3D graphical interface, visual bend simulation, and direct import of 2D/3D drawings, so the operator can see the part fold on screen before the machine touches metal. There is no G-code to write by hand.

Optional auxiliary folding knife

Not every blank is a simple rectangle, and the optional auxiliary folding knife on the HC-3000P exists for exactly those parts. Two servo motors drive a local bending unit at both ends of the beam; the CNC calls it automatically mid-program to fold a local edge, so you are not limited to bending the full sheet width in one pass.

Optional auxiliary folding knife

Technical parameters

Figures below are for the standard HC-3000P configuration. Custom options (extra axes, taller bending height, automation packages) are available on request.

Note: data above are based on the standard machine configuration.

Product Configuration

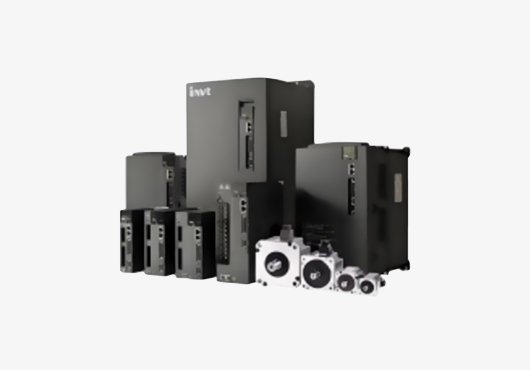

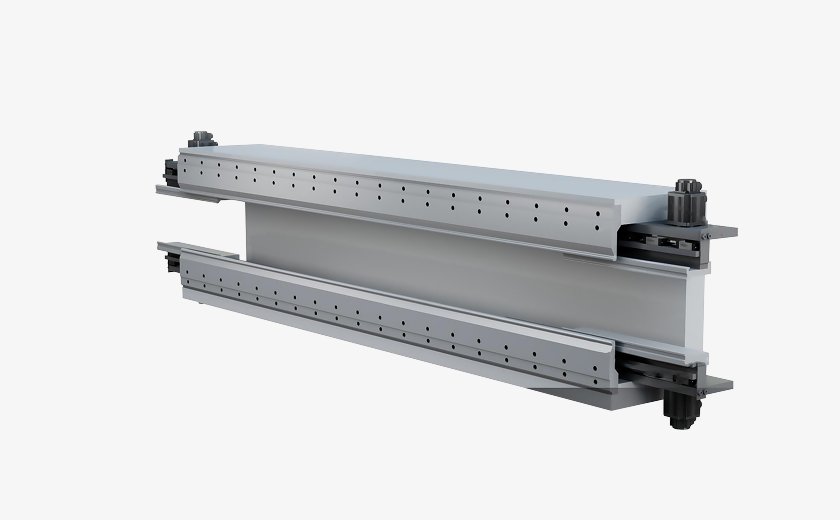

The HC-3000P combines the host body with a servo feeding section. The feeding arm offers high rotation accuracy, fast motion and stable running, while the host is built from the upper pressure beam, lower pressure beam and upper/lower folding knives. Core components are selected from established brands - INVT servo, Roth/Hanjiang linear guides, Fengke planetary reducers, NSK bearings, Schneider and Idec electrics - to protect both accuracy and uptime.

Product Configuration

1. Motor Configuration: Three 16.8KW motors are used for the up-and-down movement of the pressure cutter, three 16.8KW motors for the up-and-down movement of the folding cutter, and three 7.5KW motors for the forward-and-backward movement of the folding cutter.

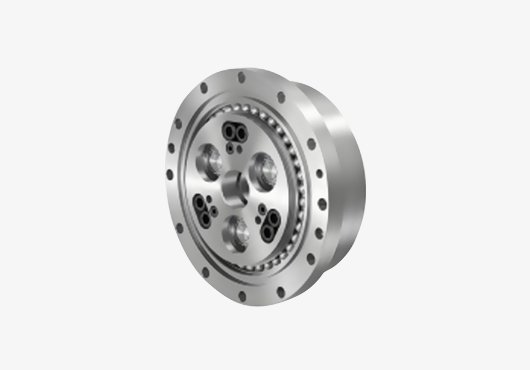

2. Reducer Configuration: Speed ratio 3; the maximum processing speed of the pressure cutter's up-and-down movement can reach 13000mm/min. The C-axis rotary reducer adopts an RV reducer structure with a speed ratio of 57, improving rotational rigidity.

3. Bearing Configuration: Imported Japanese bearings are used to improve mechanical precision and service life.

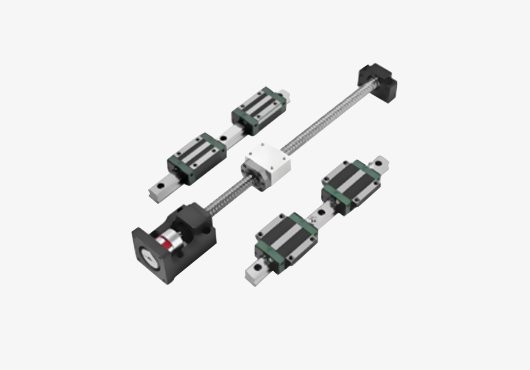

4. Guide Rail and Lead Screw: The main unit uses a 63 heavy-duty lead screw, and the guide rail uses a 45 roller structure, ensuring high precision and good stability.

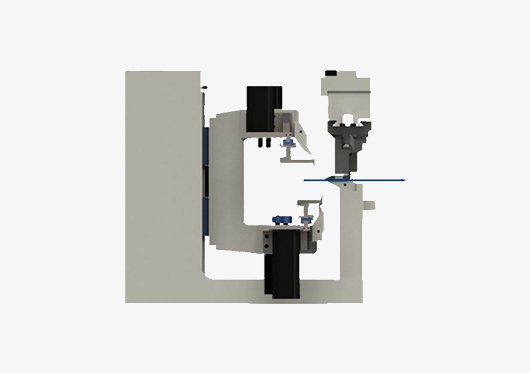

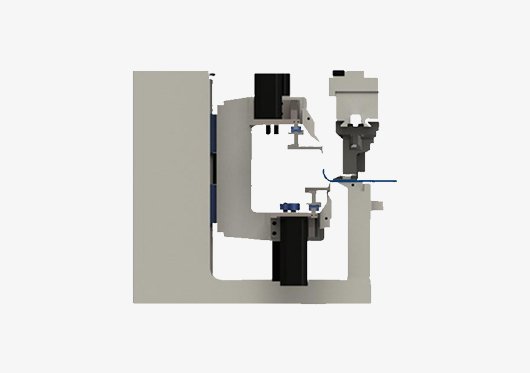

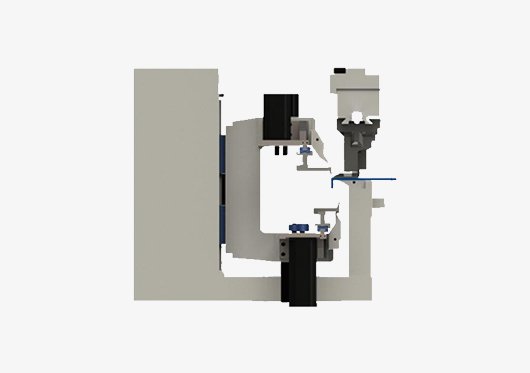

Bending principle

Positioning method

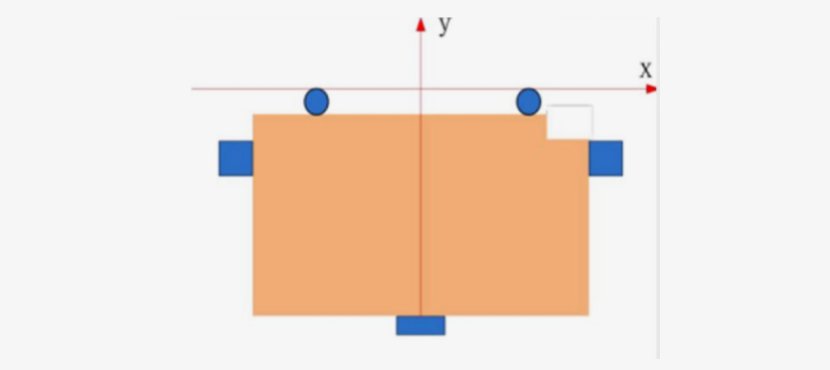

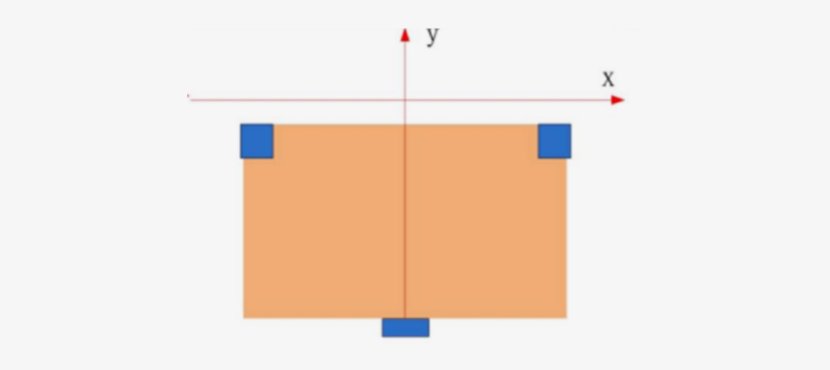

Accuracy on a panel bender is decided before the fold starts, by how squarely the blank is located. The HC-3000P handles this with servo-and-ball-screw X positioning plus a Y push plate, and gives you two locating strategies: corner positioning on cut-corner blanks, and edge positioning on asymmetric or notched parts.

Once located, the linkage-clamped pressing beam holds the sheet flat through rotation. The clamp force is tunable, so thin or cosmetic material does not get bruise marks, while thicker gauge gets the grip it needs. A servo-driven harmonic reducer turns the clamped sheet with speed and repeatability, and the feed unit runs on precision ball screws for steady X travel.

This is how the HC-3000P flexible bending center delivers 0 to 180 degrees flanges at +/-1 deg/m and +/-0.1 mm/m without depending on the operator's eye. The finished-sample gallery below shows the kind of folded, hemmed and multi-edge parts that come off the bending center fully formed, ready for welding or assembly. Good locating is the invisible feature that makes the whole machine accurate.

The combination of corner and edge locating, non-marking adjustable clamping and servo ball-screw feeding is what lets the same HC-3000P bending center switch between a symmetric box and an asymmetric notch bracket in minutes. The finished samples below show the kind of four-sided, hemmed and multi-angle panels this accurate locating produces without hand measurement. For a cabinet maker, that means first-article approval happens in minutes, not after a morning of trial flanges.

For a fabricator, the practical benefit of this positioning system is that first-off parts are good parts. The HC-3000P does not need an operator's eye to square the blank, so the first bend of the day is as accurate as the thousandth, which is what shortens your quote lead times.
