COMBINED TURRET PUNCH PRESS
ERL300 / ERL400 CNC Punch-Laser Composite Machine
PRODUCT DESCRIPTION
The CNC punch-laser composite machine combines all the processing capabilities of a servo turret punch with the high efficiency and excellent cut-edge quality of laser cutting. It can perform punching, forming, scribing, marking, rolling ribs, tapping and laser contour cutting, large-contour cutting and large-hole cutting. With a wide range of applications and high processing flexibility, the combination of punching and cutting greatly raises processing efficiency and provides a new intelligent solution for precision sheet-metal production. The machine consists of a servo turret punch, a laser cutting system and an electrical control system.
PRODUCT DETAILS
Product Configuration
Item | Specification / Model | Qty | Remark |
CNC punch-laser composite machine | ERL300 / ERL400 | 1 | 32 stations / 28 stations |
Control system | LionPunch industrial control system | 1 | Win10, 500G HDD, 8GB RAM |
Laser source (laser system) | Maxphotonics 3000W | 1 | 6000W optional |
Cutting head (laser system) | Empower BM110 | 1 | |
Chiller (laser system) | Hanli HL-3000 | 1 | |
Punch servo motor | SYNMOT (UK CT technology, hollow-shaft motor) | 1 | |
Servo drives and motors | Panasonic | 5 / 6 | Cutting-head Y-axis motion optional |
Linear guide | HIWIN (Taiwan) | 2+1+2 / 2+1+2+2 | Cutting-head Y-axis motion, incl. 2 sets for Y |
Ball screw | TBI (Taiwan) | 2+1 / 2+1+1 | Cutting-head Y-axis motion optional |
Screw support bearing | NSK (Japan) | 8 | |
Turret support bearing | NSK (Japan) | 4 | |
Air-source FRL unit | AIRTAC | 1 | |
Solenoid valve | AIRTAC | 8 | |
Proximity switch | RIKO (Taiwan) | 10 | |
Air compressor | 11 kW | 1 | Optional |
Automatic tapper | 4-head (M3 / M4 / M5 / M6) | heads | Optional |
Single-side auto load / unload | DZ-E1530AL | 1 | Optional |
3.2.1 Cutting Head
A dedicated fiber-laser cutting head is used for stable, reliable performance. It delivers high cutting speed while maintaining optimum cut quality. A non-contact capacitance sensor keeps the stand-off gap constant, ensuring a stable, good cutting result.
3.2.2 Fiber Laser
The ERL300/400 series uses the latest advanced fiber laser. Fiber lasers are the newest generation of laser sources and are widely used for a broad range of sheet metals, including non-ferrous materials.

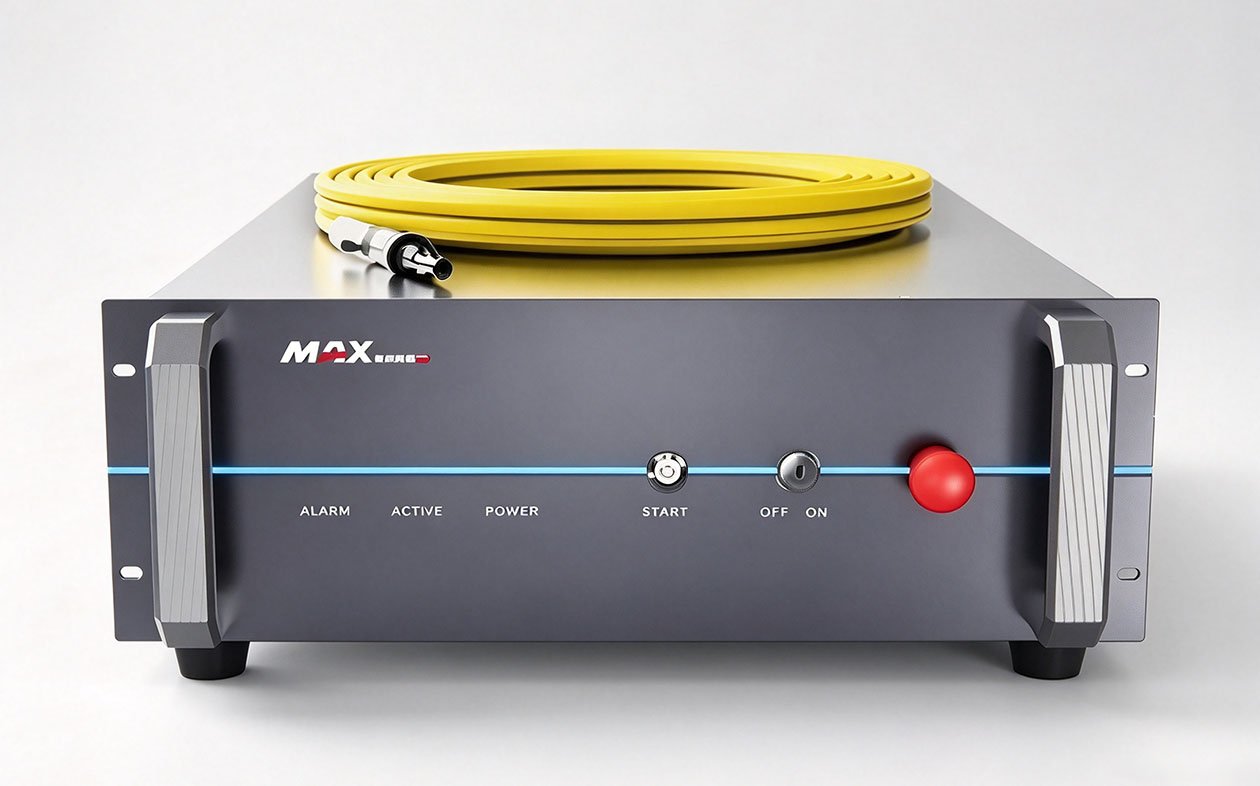

Features of the MAX fiber laser:
· Electro-optical conversion efficiency exceeds 32%. Medium-power fiber lasers are water-cooled, greatly cutting electricity consumption and operating cost for maximum productivity.
· The laser runs on electricity alone — no auxiliary gases are required — giving the lowest running and maintenance cost.
· Modular semiconductor design with redundancy; no optical lenses inside the resonator, no warm-up time, free adjustment, maintenance-free and high stability, reducing both parts cost and downtime.
· Output wavelength of 1.07 µm is ten times shorter than CO₂, with high power density and good absorption by metals, giving excellent cutting capability and the lowest processing cost.
· The beam is delivered through fiber with no complex mirror guidance — a simple optical path, stable structure and a maintenance-free external beam path.
3.2.3 Air and Water Circuit System
The air system has two parts. One supplies the cutting gas to the cutting head — clean, dry compressed air, oxygen and nitrogen. The other is auxiliary clean, dry compressed air. High-pressure nitrogen is routed through a high-pressure manifold controlled by high-pressure solenoid valves directly to the cutting head, with a manually adjustable pressure regulator that sets nitrogen pressure according to sheet thickness and saves nitrogen. Where edge quality is not critical, high-pressure air can be used, sharing the line with nitrogen for convenience and lower auxiliary-gas cost. The water system has two circuits: cooling water from the chiller enters the laser, cools the internal radiator and returns to the chiller (low-temperature circuit); a second circuit runs cooling water to the QBH output and back.

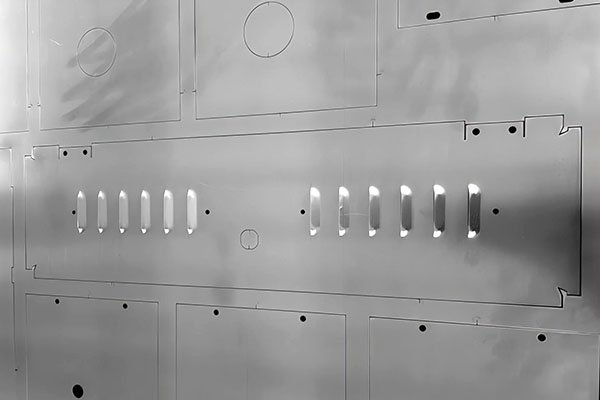

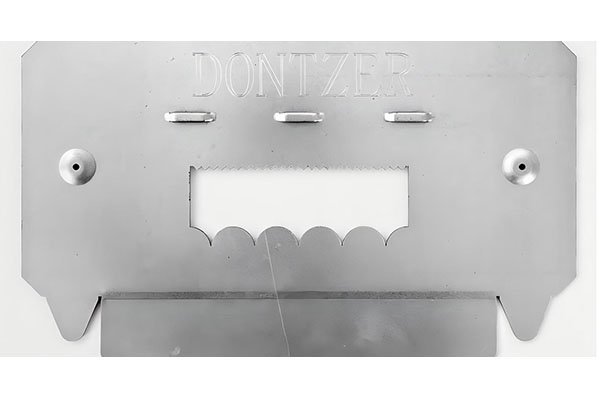

3.3 Processed Samples
